FM Series, General Electronics Racks for Small Networking, AV, Telecom & lab application. Racks manufactured out of steel sheet punched, formed, welded and Powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product.

​​

Standard for Racks configuration will be welded frame integrated with side panel and vented top cover with fan mounting provision, Associated with Front Glass Door with lock & Key and Back Metal door with lock & key and freestanding on floor with 4 No casters wheels with 2 No with brakes and 2 No without brakes

Features

  • Conforms to DIN 41494 or Equivalent EIA /ISO / EN / CEA Standard

  • Adjustable mounting depth

  • 4 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space .

  • Universal 44.45MM Pitch Holes For DIN Standard Racks

  • State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry.

  • 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments) .

  • Powder coated finish with Seven tank pretreatment process meeting ASTM standard .

  • Grounding & Bonding Options

  • Fan module Mount Provision on top Cover

Accessories â€‹

  • Cable Organisers

  • Power Distribution Units

  • Shelves

  • Fan Modules

  • Rack ground Kit

​

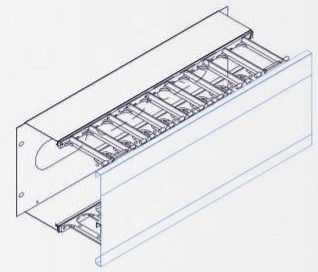

HDHCO SERIES

HDHCO Specially designed to meet the challenges of high density cable management due to increase no. of patch panel per Rack and also introduction of angular jack panel.

Cable organizer composite of Aluminum and

ABS with highest quality standards under stringent

ISO 9001 IIS0 14001 27001 ISO 45001 Manufacturing fr Quality management system to ensure highest quality product.

Standard configuration will be 2U, 31J fr 41] with ABS finger module for cable management with unique double hinge door Available in Front or Front 8 Back Variants.

Model Matrix and Dimensions


HDVCO SERIES

HDVCO Specially designed to meet the challenges of high density cable management due to increase of
cable volume and more due to introduction of angular jack panel. Cable organizer frame manufactured out of steel sheet punched, formed, welded and Powder coated and Doors made of aluminum sheet punched formed and powder coated with highest quality standards under stringent ISO 9001 ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product.

Standard configuration will be 6 Inch, 8 Inch, 12 Inch & 15 Inch with unique double hinge door on Front & Back, ABS semicircular finger module & ABS spools for cable management. Available in Front & Front & Back Variants.

​

Features

  • Composite construction basic frame-Steel powder coated and fingers made of ABS for high strength to carry large quantity cables.

  • Cable spools and Slots in centre support member for large quantity cable management.

  • Semicircular ABS fingers assure no cable damage.

  • Unique double hinge design door at front and back to open door from left to right or right to left for easy cable management.

  • The vertical cable organizer free standing on floor and bolted to open rack for better alignment and aesthetic looks.

Model Matrix and Dimensions


NAOR 2 POST SERIES

NAOR 2 Post Series_3.jpg

     NAOR 2 Post Series Configurator           Drawing with Critical Parts

NAOR - 2 Post Series are Ultra rigid Racks for high density application for networking / labs / data Centres. These Racks are made of rugged aluminum profiles, individually powder coated and bolted with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system.

Standard for Racks configuration will be bolted frame with 2 or 4 Post. 4 Post will have adjustable Steel folded depth members to adjust the depth to meet site requirements. Available in 22RU~52U variants.

​

Features

  • Conforms to DIN 41494 or Equivalent EIA / ISO / EN Standard

  • High-strength, lightweight 6061-T6 aluminum extrusion constructions

  • Two top angles and heavy-duty assembly hardware for a stronger rack to handle heavier loading

  • 25 No. M6 mounting screws with combination Phillips/ straight heads and pilot points to reduce cross threading and installation time.

  • Unique packaging inserts eliminate damage from components hitting together in the carton during shipping and handling.

  • Ease of assembling by high quality fasteners.

  • Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.

  • Numbered U positions.

  • Panel Mounting Holes: M6 threads in both flanges.

  • Powder Coated or anodized provide a uniform appearance and protection against aluminum oxidation corrosion.

  • State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry.

  • Conductive M6 tapped DIN standard holes -100% assured conductivity within the rack. Eliminate separate grounding strip.

  • Heavy duty bottom (160X60X8Th) MM & top angles (38X38X4.8Th) MM and C frames (32X75X5Th) MM to ensure up to 1500Kg static load capacity

  • Custom configurations and assemblies available by special order

  • Assembly hardware is included

  • Weight capacity of 1500Kg Static (weight must be evenly distributed)

​

Accessories

  • ​Cable Oragnizers

  • Power Distribution Units

  • Shelves

  • Rack Ground Kit

  • Cable Runways

  • Extended Leg / Castors


Model Matrix and Dimensions


NORMAL POWER DISTRIBUTION UNIT

Power Distribution is critical part of Rack solution and Industry can't afford down time or failure of product, as this directly impact operation of missions critical equipment further effecting business process. Net Rack understand the criticality of PDU. All models are professionally designed with High Quality & Tested Inputs to ensure customer get highest quality of the product with 100% Reliability and Dependability. Net Rack Offers wide Range of high quality power distribution to feed power to mission critical equipment. Net Rack PDU comes with high quality powder coated metal Box with best available electrical parts properly Rated and certified.

NetRack Offers 3 variants to suit the requirement of industry

  • Normal Power Distribution units 1 & 3 Phase

  • Metered Power Distribution units 1 & 3 Phase

  • Intelligent Power Distribution units 1 & 3 Phase

​

Net Rack PDU's are Rated and protected with MCB & fuses to meet different industrial requirements. Input either open or with Indian/IEC Plugs. Available in horizontal and vertical mounting models with 1 Phase & 3 Phase Variants.

Standard off the shelf models are below and can be customized to customer requirement

Standard Socket Types


Indian Round Pin


Sockets Single Phase


NORMAL PDU-IEC SOCKETS


IEC Single Phase Model


IEC Sockets Single & Three Phase


IEC Three Phase Model


NRS 600 SERIES

NRS Series, Rigid Racks for Servers, Networking, AV, Telecom & Lab application. Racks manufactured out of steel sheet punched, formed, welded and powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product. Standard for Racks configuration will be welded frame with 4 no pillars of 7 folded profile welded to top and bottom ribbed/reinforced frame additionally supported depth wise by welding 6 no depth rail 4 folded profile. Associated with vented top cover with fan mounting provision Front Glass or perforated Metal Door with lock & Key and Back Vented / perforated metal door with lock & key and partially vented or Plain side panels 1200 deep rack will be configured with dual side panel. Free standing on floor with 4 No casters wheels with 2 No with brakes and 2 Nos. without brakes & with Levelers OR plinth. Available in 6RU~52RU Variants with 650, 800,1000 & 1200 Depth configurations and 600 Width configurations.


Features

  • Conforms to DIN 41494 or Equivalent EIA / ISO / EN / CEA Standard

  • Adjustable mounting depth

  • 4 No Adjustable, 19” verticals with punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space

  • Numbered U positions

  • Universal 44.45MM Pitch Holes For DIN Standard Racks State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry

  • 100% assured compatibility with all equipment conforming to DIN 41494 (General industrial standard for equipment)

  • Grounding & Bonding Options

  • Fan module Mount provision on top cover

Accessories

  • Cable Basket

  • Angle Pair

  • Ganging Kit

  • Fixed Shelf

  • Cantilever Shelf

  • Sliding Shelf

  • Key Board Shelf

  • Power Distribution Units

  • Cable Oragnizer

  • Fans and Fan Modules

  • Rack Ground Kit

  • Plinth, Casters

Technical Data


NRS1 600 SERIES

NRS 1 Series, General Electronics Racks for Servers, Networking, AV, Telecom & Lab application. Racks manufactured out of steel sheet punched, formed, welded and Powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product.

Standard for Racks configuration will be welded frame with vented top cover with fan mounting provision, Associated Front Glass or Perforated Metal Door with Lock & Key and Back Vented / Perforated Metal Door with Lock & Key and partially vented side panels, free standing on floor with 4 No. casters wheels with 2 No with brakes & 2 No. without brakes, optional levelers.

Available in 6RU~42RU Variants with 650, 800 & 1000 Depth configurations and 600 & 800 Width configurations.


Features

  • Conforms to DIN 41494 or Equivalent EIA / ISO / EN / CEA Standard

  • Adjustable mounting depth

  • 4 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.

  • Numbered U positions

  • Universal 44.45MM Pitch Holes for DIN Standard Racks

  • State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry

  • 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)

  • Powder coated finish with Seven tank pretreatment process meeting ASTM standard

  • Grounding & Bonding Options

  • Fan module Mount provision on top cover.

Technical Data


Accessories

  • Cable Basket

  • Angle Pair

  • Ganging Kit

  • Fixed Shelf

  • Cantilever Shelf

  • Sliding Shelf

  • Key Board Shelf

​

​

  • Power Distribution Units

  • Cable Oragnisers

  • Fans and Fan Modules

  • Rack Ground Kit

  • Plinth

  • Casters

  • Levellers

NRS 800 SERIES


NRS Series, Rigid Racks for Severs, Networking, AV, Telecom & lab application. Racks manufactured out of steel sheet punched, formed, welded and Powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001 Manufacturing & Quality management system to ensure highest quality product.

Standard for Racks configuration will be welded frame with 4 no Pillars of 7 folded profile welded to top and bottom ribbed/ reinforced frame additionally supported depth wise by welding 6 no depth rail 4 folded profile. Associated with vented top cover with fan mounting provision Front Glass or perforated Metal Door with lock & Key and Back Vented / perforated metal door with lock & key and partially vented or Plain side panels 1200 deep rack will be configured with dual side panel. Free standing on floor with 4 No casters wheels with 2 No with brakes and 2 Nos. without brakes & with Levelers OR plinth.

Available in 6RU~52RU Variants with 800,1000 & 1200 Depth configurations and 800 width configurations.


Features

  • Conforms to DIN 41494 or Equivalent EIA / ISO / EN / CEA Standard

  • Adjustable mounting depth

  • 4 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space

  • Numbered U positions

  • Universal 44.45MM Pitch Holes For DIN Standard Racks

  • State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry

  • 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)

  • Powder coated finish with Seven tank pretreatment process meeting ASTM standard

  • Grounding & Bonding Options

  • Fan module Mount Provision on top Cover


SINGLE SECTION WALL MOUNTRACKS

WM Series, General Electronics Racks for Small Networking, AV, Telecom & Lab application. Racks are manufactured out of steel sheet punched, formed, welded and powder coated with highest quality standards under stringent ISO 9001 | ISO 14001 ISO 27001 ISO 45001 Manufacturing & Quality management system to ensure highest quality product.

Standard for Racks configuration will be welded frame integrated with side panel and vented top cover with fan mounting provision, associated Front Glass Door with Lock & Key and provision to mount racks on wall.

​Features

  • Conforms to DIN 41494 or Equivalent EIA ISO/EN/CEA Standard

  • Adjustable mounting depth

  • 2 No Adjustable, 19" verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.

  • State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry.

  • 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)

  • Powder coated finish with seven tank pretreatment process meeting ASTM standard Grounding & Bonding Options

  • 1 or 2 Fan Mount provision on top cover


Accessories

  • Cable Organisers

  • Power Distribution Units

  • Shelves

  • Cooling Fans

  • Rack ground Kit
